পণ্যের বিবরণ:
প্রদান:
|
| Model: | TWN-P-80A-1-AS | Stroke per jaw [mm: | 8 |
|---|---|---|---|
| Closing/ opening force[N: | 805/- | Min. spring force[N: | 240 |
| Weight [kg: | 0.6 | Recommended workpiece weight[kg: | 2.82 |
| Closing/ opening time[s: | 0.03/0.05 | Repeat accuracy [mm: | 0.01 |
| Protection class IP: | 40/64 |

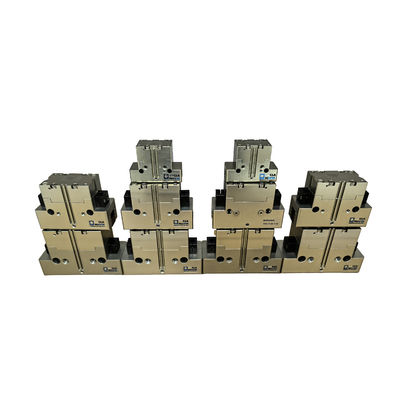

TWN-P Series Gripper with Gripping Force Maintenance and Dust-Tight IP64 Option
2-Jaw Parallel Grippers, Multi-Tooth Guidance TWN-P
Product Information
Excellent Performance
The TWN-P series grippers integrate precision design, permanent self-lubrication, and straight-line multi-tooth guidance.
● Compact structure ideal for short strokes and large loads
● Contact stress is reduced by distributing force across more surfaces
● Lubricant spreads faster and more consistently
● Ensures long-lasting motion stability and accuracy
● Oil-retaining design in guide system extends tool life

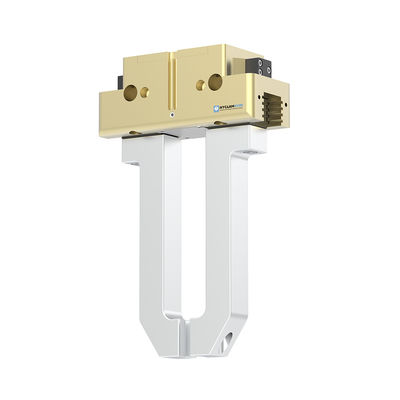

● Maximum allowable finger length is enhanced by 50%

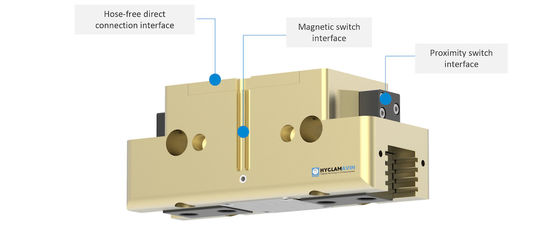

2. Multiple interface types for sensors and pneumatics are supported.

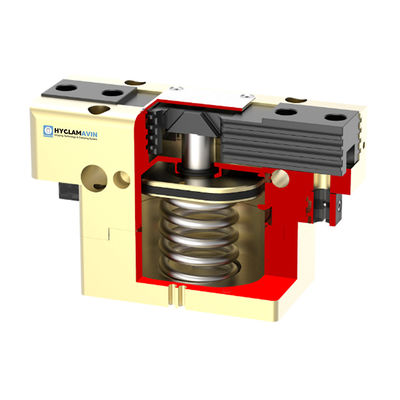

Gripping force maintenance-AS/IS
TWN-P grippers can include gripping force hold, labeled TWN-P-AS/IS (AS: close holding, IS: open holding).
Spring-based force retention maintains grip during pressure loss.
Dust-tight version
High-temperature version

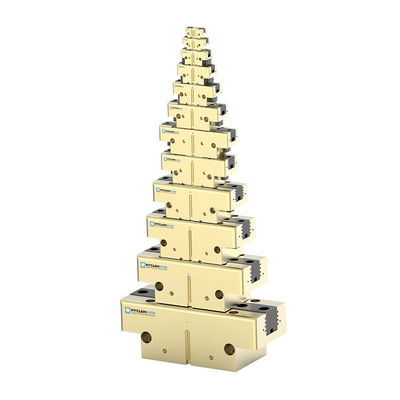

Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| TWN-P-40A-1 | 2.5 | 198/210 | 0.08 | 0.99 | 0.02/0.02 | 0.01 | 40/64 | |
| TWN-P-40A-1-AS | 2.5 | 258/- | 60 | 0.1 | 0.99 | 0.02/0.03 | 0.01 | 40/64 |
| TWN-P-40A-1 | 2.5 | -/280 | 70 | 0.1 | 0.99 | 0.03/0.02 | 0.01 | 40/64 |
| TWN-P-50A-1 | 4 | 240/255 | 0.16 | 1.2 | 0.02/0.02 | 0.01 | 40/64 | |
| TWN-P-50A-1-AS | 4 | 330/- | 90 | 0.2 | 1.2 | 0.02/0.03 | 0.01 | 40/64 |
| TWN-P-50A-1-IS | 4 | -/345 | 90 | 0.2 | 1.2 | 0.03/0.02 | 0.01 | 40/64 |
| TWN-P-50A-2 | 2 | 430/460 | 0.16 | 2.15 | 0.02/0.02 | 0.01 | 40/64 | |
| TWN-P-50A-2-AS | 2 | 550/- | 120 | 0.2 | 2.15 | 0.02/0.03 | 0.01 | 40/64 |
| TWN-P-50A-2-IS | 2 | -/580 | 120 | 0.2 | 2.15 | 0.03/0.02 | 0.01 | 40/64 |
| TWN-P-64A-1 | 6 | 360/388 | 0.26 | 1.8 | 0.02/0.02 | 0.01 | 40/64 | |
| TWN-P-64A-1-AS | 6 | 515/- | 155 | 0.36 | 1.8 | 0.02/0.04 | 0.01 | 40/64 |
| TWN-P-64A-1-IS | 6 | -/543 | 155 | 0.36 | 1.8 | 0.04/0.02 | 0.01 | 40/64 |
| TWN-P-64A-2 | 3 | 730/785 | 0.26 | 3.65 | 0.02/0.02 | 0.01 | 40/64 | |
| TWN-P-64A-2-AS | 3 | 1040/- | 310 | 0.36 | 3.65 | 0.02/0.04 | 0.01 | 40/64 |
| TWN-P-64A-2-IS | 3 | -/1095 | 310 | 0.36 | 3.65 | 0.04/0.02 | 0.01 | 40/64 |
| TWN-P-80A-1 | 8 | 565/630 | 0.52 | 2.82 | 0.04/0.04 | 0.01 | 40/64 | |
| TWN-P-80A-1-AS | 8 | 805/- | 240 | 0.6 | 2.82 | 0.03/0.05 | 0.01 | 40/64 |
| TWN-P-80A-1-IS | 8 | -/870 | 240 | 0.6 | 2.82 | 0.05/0.03 | 0.01 | 40/64 |
| TWN-P-80A-2 | 4 | 1145/1275 | 0.52 | 5.72 | 0.04/0.04 | 0.01 | 40/64 | |
| TWN-P-80A-2-AS | 4 | 1535/- | 390 | 0.6 | 5.72 | 0.03/0.05 | 0.01 | 40/64 |
| TWN-P-80A-2-IS | 4 | -/1665 | 390 | 0.6 | 5.72 | 0.05/0.03 | 0.01 | 40/64 |
| TWN-P-100A-1 | 10 | 930/995 | 0.9 | 4.65 | 0.07/0.07 | 0.01 | 40/64 | |
| TWN-P-100A-1-AS | 10 | 1300/- | 370 | 1.1 | 4.65 | 0.05/0.09 | 0.01 | 40/64 |
| TWN-P-100A-1-IS | 10 | -/1345 | 350 | 1.1 | 4.65 | 0.09/0.05 | 0.01 | 40/64 |
| TWN-P-100A-2 | 5 | 1860/2000 | 0.9 | 9.3 | 0.07/0.07 | 0.01 | 40/64 | |
| TWN-P-100A-2-AS | 5 | 2400/- | 540 | 1.1 | 9.3 | 0.05/0.09 | 0.01 | 40/64 |
| TWN-P-100A-2-IS | 5 | -/2700 | 700 | 1.1 | 9.3 | 0.09/0.05 | 0.01 | 40/64 |
| TWN-P-110A-1 | 20 | 1230/1330 | 2.5 | 6.15 | 0.15/0.15 | 0.01 | 40/64 | |
| TWN-P-125A-1 | 13 | 1475/1590 | 1.4 | 7.37 | 0.10/0.10 | 0.01 | 40/64 | |
| TWN-P-125A-1-AS | 13 | 2125/- | 650 | 1.9 | 7.37 | 0.08/0.12 | 0.01 | 40/64 |
| TWN-P-125A-1-IS | 13 | -/2240 | 650 | 1.9 | 7.37 | 0.12/0.08 | 0.01 | 40/64 |
| TWN-P-125A-2 | 6 | 2990/3220 | 1.4 | 14.95 | 0.10/0.10 | 0.01 | 40/64 | |
| TWN-P-125A-2-AS | 6 | 4190/- | 1200 | 1.9 | 14.95 | 0.08/0.12 | 0.01 | 40/64 |
| TWN-P-125A-2-IS | 6 | -/4420 | 1200 | 1.9 | 14.95 | 0.12/0.08 | 0.01 | 40/64 |
| TWN-P-160A-1 | 16 | 2600/2715 | 3 | 13 | 0.10/0.10 | 0.01 | 40/64 | |
| TWN-P-160A-1-AS | 16 | 3550/- | 900 | 3.8 | 13 | 0.10/0.20 | 0.01 | 40/64 |
| TWN-P-160A-1-IS | 16 | -/3615 | 900 | 3.8 | 13 | 0.20/0.10 | 0.01 | 40/64 |
| TWN-P-160A-2 | 8 | 5270/5500 | 3 | 26.35 | 0.10/0.10 | 0.01 | 40/64 | |
| TWN-P-160A-2-AS | 8 | 6770/- | 1500 | 3.8 | 26.35 | 0.10/0.20 | 0.01 | 40/64 |
| TWN-P-160A-2-IS | 8 | -/7000 | 1500 | 3.8 | 26.35 | 0.20/0.10 | 0.01 | 40/64 |
| TWN-P-200A-1 | 25 | 4300/4500 | 5.5 | 21.5 | 0.30/0.30 | 0.02 | 40/64 | |
| TWN-P-200A-1-AS | 25 | 5600/- | 1300 | 7 | 21.5 | 0.30/0.60 | 0.02 | 40/64 |
| TWN-P-200A-1-IS | 25 | -/6000 | 1500 | 7 | 21.5 | 0.60/0.30 | 0.02 | 40/64 |
| TWN-P-200A-2 | 14 | 7700/8100 | 5.5 | 38.5 | 0.30/0.30 | 0.02 | 40/64 | |
| TWN-P-200A-2-AS | 14 | 10200/- | 2500 | 7 | 38.5 | 0.30/0.60 | 0.02 | 40/64 |
| TWN-P-200A-2-IS | 14 | -/10900 | 2800 | 7 | 38.5 | 0.60/0.30 | 0.02 | 40/64 |
| TWN-P-240A-1 | 30 | 5450/5680 | 8.7 | 27.25 | 0.50/0.50 | 0.04 | 40/64 | |
| TWN-P-240A-1-AS | 30 | 8200/- | 2750 | 11.8 | 27.25 | 0.45/0.90 | 0.04 | 40/64 |
| TWN-P-240A-1-IS | 30 | -/8430 | 2750 | 11.8 | 27.25 | 0.90/0.45 | 0.04 | 40/64 |
| TWN-P-240A-2 | 17 | 9440/9850 | 8.9 | 47.2 | 0.50/0.50 | 0.04 | 40/64 | |
| TWN-P-240A-2-AS | 17 | 14590/- | 5150 | 12 | 47.2 | 0.45/0.90 | 0.04 | 40/64 |
| TWN-P-240A-2-IS | 17 | -/15000 | 5150 | 12 | 47.2 | 0.90/0.45 | 0.04 | 40/64 |
| TWN-P-300A-1 | 35 | 6850/7190 | 13.6 | 34.25 | 0.50/0.50 | 0.05 | 40/64 | |
| TWN-P-300A-1-AS | 35 | 8600/- | 1750 | 17.3 | 34.25 | 0.40/0.70 | 0.05 | 40/64 |
| TWN-P-300A-1-IS | 35 | -/8940 | 1750 | 17.3 | 34.25 | 0.70/0.40 | 0.05 | 40/64 |
| TWN-P-300A-2 | 20 | 11870/12460 | 13.6 | 59.35 | 0.50/0.50 | 0.05 | 40/64 | |
| TWN-P-300A-2-AS | 20 | 15870/- | 4000 | 17.3 | 59.35 | 0.40/0.70 | 0.05 | 40/64 |
| TWN-P-300A-2-IS | 20 | -/16460 | 4000 | 17.3 | 59.35 | 0.70/0.40 | 0.05 | 40/64 |
| TWN-P-380A-1 | 45 | 10700/11100 | 27 | 53.5 | 0.60/0.60 | 0.05 | 40/64 | |
| TWN-P-380A-1-AS | 45 | 14300/- | 3600 | 37 | 53.5 | 0.50/0.80 | 0.05 | 40/64 |
| TWN-P-380A-1-IS | 45 | -/14800 | 3700 | 37 | 53.5 | 0.80/0.50 | 0.05 | 40/64 |
| TWN-380A-2 | 26 | 20500/21300 | 27 | 102.5 | 0.60/0.60 | 0.05 | 40/64 | |
| TWN-P-380A-2-AS | 26 | 27400/- | 6900 | 37 | 102.5 | 0.50/0.80 | 0.05 | 40/64 |
| TWN-P-380A-2-IS | 26 | -/28300 | 7000 | 37 | 102.5 | 0.80/0.50 | 0.05 | 40/64 |
Recommended accessories
